7750 Security Mesh System

 images/707_Recyard1.jpg (177216 bytes)

Description

7750 Security Mesh System is used in areas where contained security is required but air flow and audible communications are demanded. DDS 7750 Security Mesh System is constructed using 1/4" or 3/8" diameter steel woven rod on 2" centers welded at each intersection with the tubular frame. The horizontal, intermediate and vertical framing is constructed from 1 3/4" x 2 1/2" formed 10 Ga. steel closed shapes. We include all closure angles and mounting clips for installation.

Available Mesh Systems

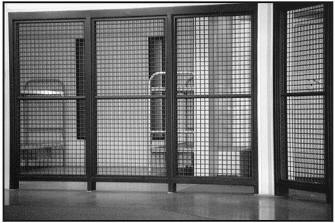

7750A Security Mesh System - The 3/8" dia. system is used in Medium to Maximum Security controlled exercise yards, cell fronts and window screens.

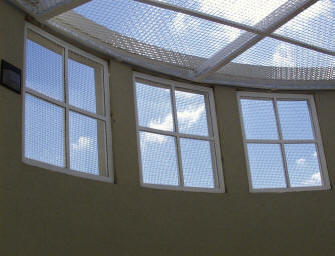

7750B Security Mesh System - The 1/4" dia. system is used in Minimum to Medium Security controlled exercise yards, stair wells, mezzanine railings, holding cells, visitation areas and window screens.

Standard Features

Minimum to Maximum Security at affordable cost

Easy installation

Fully engineered system

All steel has shop coat primer

Optional Features

-SS Stainless steel in lieu of steel construction for high abuse situations

-PC Baked-on-Powder Coated steel construction for pre finished situations in standard Architectural colors from Powder Color Brochure below

These units are shipped KD in sections, vertical wall bracing usually requires anchors or bolts (supplied by DEC).

Powder Color Brochure
